Rogers Stirk Harbour + Companions’ first New York residential tower reveals its luxurious each inside and outside

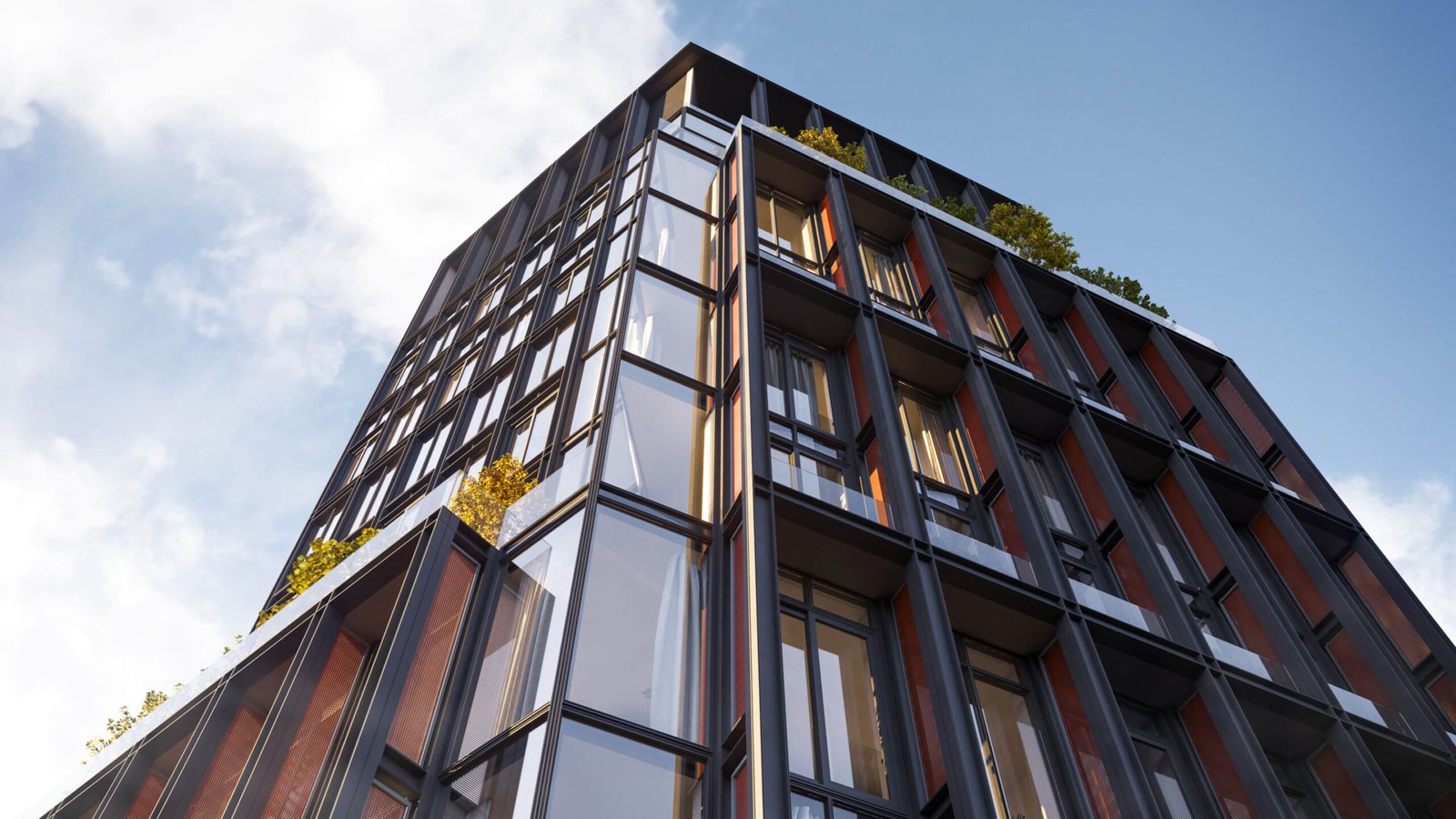

No. 33 Park Row by Rogers Stirk Harbour+ Partners is a glazed, 23-story residential tower on a corner lot tangent to New York’s City Hall Park in Tribeca. The luxury residential building is nearing completion and on track for a Winter 2022 opening, and includes four levels of commercial space at the building’s base with 30 one- to five-bedroom units above. The structure follows a kite-shaped plan so as to place strong visual emphasis on the intersection of Park Row and Beekman Street. Internally, the architects located the building’s structural core at the back to maximize park views and northern sunlight for each unit.

The form steps up from Beekman to Park Row to negotiate the block’s steep change in height. A series of loggias made up of fabricated metal sections by Custom Metalcrafters, concrete, and copper side screens provide depth and materiality to a facade intended to harken back to Lower Manhattan’s industrial past. Each apartment includes floor-to-ceiling laminated double glazing with a low emissivity coating to maximize views and limit heat loss. The unitized window wall panels are generally 12 feet in height and were designed with minimal framing and large format integrated lift and slide doors to allow access to loggias and terraces. The project incorporates approximately 450 multi-pane unitized panels, produced by Custom Metalcrafters and Pielle di Pederiva Dino, that are articulated across the facade in 2-story modules.

The team worked with consultants at SURFACE DESIGN GROUP in New York to develop No. 33 Park Row’s sleekly articulated facades. Differing tolerances between the concrete structure and the aluminum-framed glazing and integrated copper screens required significant testing to execute this carefully detailed facade. Full-scale mockups were produced and reviewed in Italy prior to construction. Halfen channels were cast on-site into the concrete frame to allow adjustable curtain wall brackets to be installed. The prefabricated unitized cladding panels were then supported by these “bespoke brackets.” The end result is a thoroughly detailed marriage of materials that certainly exudes the luxury housed within.
